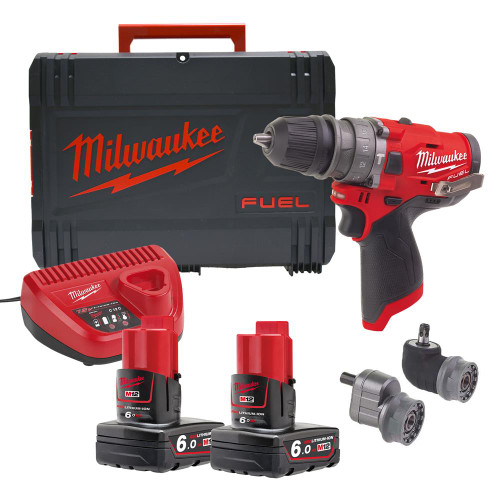

Milwaukee M12 FPDXKIT-602X 12V FUEL Brushless Combi Drill with 2x 6.0Ah Batteries, Charger & Case
Key Features
- Brushless POWERSTATE™ motor delivers up to 44 Nm of torque
- Removable Chuck System with 3 Heads for Multiple Applications
- 13mm Keyless Chuck
- Full Metal Planetary Gearbox
- REDLINK PLUS™ intelligence system delivers an advanced digital overload protection
YOU SAVE £23.46 (9%)
£264.96
£241.50
EX VAT
Added for collection
Milwaukee M12 FPDXKIT-602X 12V FUEL Brushless Combi Drill with 2x 6.0Ah Batteries, Charger & Case
Description
-
Product Code:MILM12FPDXKIT602X
-
Model Number: M12FPDXKIT-602X
-
Brand: Milwaukee
-
Barcode: 4058546221348
-
Category: Combi Drills
-
Taxonomy: Hardware > Tools > Drills > Handheld Power Drills
M12 FUEL Sub Compact 2-Speed Hammer Drill Driver with Milwaukee® designed and built brushless POWERSTATE™ motor delivering more power in a sub-compact size.
REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load. REDLITHIUM-ION™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
Max 44Nm Torque, 0-1700rpm no load speed, max 0-25500bpm percussion rate, max 35mm drilling capacity into wood, max 13mm drilling capacity into steel, max 13mm drilling capacity into masonry, 13mm metal chuck for quick bit changes and bit retention.
Electronic clutch with 16 torque settings, plus 1 for locked clutch drilling and 1 for locked clutch hammer.
6-in-1 removable chuck; 1 - ¼’’ Drill Driver. 2 - 13mm Chuck Drill Driver. 3 - ¼’’ RA Drill Driver. 4 - ¼’’ Offset Drill Driver. 5 - 13mm RA Chuck Drill Driver. 6 - Hammer Drill Driver.
Fuel gauge displays remaining charge so you'll never gert caught short again. Brightest LED workspace illumination ideal for low level light situations.
Flexible battery system: works with all Milwaukee® M12™ batteries.
Specification
| Batteries | 2 x 6.0Ah Lion Batteries |
| Charge Time | 90 Minute Charger |
| Case | Includes Carry Case |
| Voltage | 12V |
| Battery Type | Lithium-Ion |
| Battery Capacity | 6.0Ah |
| Number of Batteries | 2 |
| Charger Included? | Yes |
| Battery Compatibility | Milwaukee 12v Li-ion |
| Includes Case | Yes |
| Brushless Motor | Yes |
| Chuck Type | 13mm Keyless |
| Speed Control | Variable Speed |
| Reverse Control | Reverse Action |
| Number of Gears | 2 |
| Max Bit Capacity in Wood | Drilling Capacity 35mm (Wood) |
| Max Bit Capacity in Metal | Drilling Capacity 13mm (Metal) |
| No Load Speed (RPM) | 1700 |
| Drilling Modes | Hammer Action |
| Max Bit Capacity in Masonry | Drilling Capacity 13mm (Masonry) |
| Torque Settings | 16 |
| Maximum Torque | 44Nm |
| Power Supply | Cordless |
| Buying Option | With 2x 6.0Ah Batteries, Charger and Case |
| Pack Size | 1 |
| Product Weight | 1.20kg |
Warranty Information

The warranty period is 12 months and commences on the date when the product was purchased. This date must be documented by an invoice or other proof of purchase. The warranty period is one year minimum for products, and one year maximum for batteries and chargers. This warranty applies only on new products.
In addition to any statutory rights resulting from the purchase of a new product, all MILWAUKEE branded power tools, outdoor tools and batteries are covered by a voluntary guarantee granted by the manufacturer
The MILWAUKEE Guarantee(s) are only applicable to purchaser(s) who purchase the products as end users ("Purchaser").
Most Milwaukee products can be registered for a 3-year warranty. The products EXCLUDED from the 3-year warranty are: Rechargeable battery packs, battery chargers, and accessories.
You must register your tool within 30 days of purchase. You can register your tools here:https://extension.milwaukeetool.eu/index.htm
Features We Love
BRUSHLESS MOTOR
MILWAUKEE M12
MILWAUKEE FUEL
BRUSHLESS MOTOR
At the heart of this machine is the brushless motor that allows you to use the tool efficiently. As part of its design, the tool utilises every bit of battery power, all while reducing the need for ongoing maintenance and the amount of heat generated to work more effectively. The perfect symmetry between battery power and usage ensuring you get all the power you need, when you need it.
MILWAUKEE M12
Milwaukee's M12 range is a fantastic range of 12V subcompact tools. Built for tough conditions, these small but powerful tools are perfect for those of you that don't need the added weight, size or power of 18V. The range is continuing to grow and you can already get over 100 other tools on the M12 platform. Built for the professional, each M12 product delivers the durability users have come to expect from MILWAUKEE. Whether it is the M12 Heated Jackets, designed with a new inner lining material that optimises heat transfer to the user, or the M12 FUEL HATCHET pruning saw delivering outstanding control and access.
SHOP THE M12 RANGE
MILWAUKEE FUEL
The Milwaukee FUEL range is unique compared to standard Milwaukee tools as it features much more powerful POWERSTATE brushless motors, than your standard brushless tools. According to Milwaukee, FUEL is 4 times as powerful! The POWERSTATE brushless motor delivers more application speed, torque and durability in a more compact form. It also produces less noise and cools down quicker to deliver years of maintenance free performance.
SHOP THE FUEL RANGEProduct is also in :
Customer Reviews
Ask a Question
Questions Answered
Key Features
- Brushless POWERSTATE™ motor delivers up to 44 Nm of torque
- Removable Chuck System with 3 Heads for Multiple Applications
- 13mm Keyless Chuck
- Full Metal Planetary Gearbox
- REDLINK PLUS™ intelligence system delivers an advanced digital overload protection
Description
Description
-
Product Code:MILM12FPDXKIT602X
-
Model Number: M12FPDXKIT-602X
-
Brand: Milwaukee
-
Barcode: 4058546221348
-
Category: Combi Drills
-
Taxonomy: Hardware > Tools > Drills > Handheld Power Drills
M12 FUEL Sub Compact 2-Speed Hammer Drill Driver with Milwaukee® designed and built brushless POWERSTATE™ motor delivering more power in a sub-compact size.
REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load. REDLITHIUM-ION™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
Max 44Nm Torque, 0-1700rpm no load speed, max 0-25500bpm percussion rate, max 35mm drilling capacity into wood, max 13mm drilling capacity into steel, max 13mm drilling capacity into masonry, 13mm metal chuck for quick bit changes and bit retention.
Electronic clutch with 16 torque settings, plus 1 for locked clutch drilling and 1 for locked clutch hammer.
6-in-1 removable chuck; 1 - ¼’’ Drill Driver. 2 - 13mm Chuck Drill Driver. 3 - ¼’’ RA Drill Driver. 4 - ¼’’ Offset Drill Driver. 5 - 13mm RA Chuck Drill Driver. 6 - Hammer Drill Driver.
Fuel gauge displays remaining charge so you'll never gert caught short again. Brightest LED workspace illumination ideal for low level light situations.
Flexible battery system: works with all Milwaukee® M12™ batteries.
Features We Love
BRUSHLESS MOTOR
At the heart of this machine is the brushless motor that allows you to use the tool efficiently. As part of its design, the tool utilises every bit of battery power, all while reducing the need for ongoing maintenance and the amount of heat generated to work more effectively. The perfect symmetry between battery power and usage ensuring you get all the power you need, when you need it.
MILWAUKEE M12
Milwaukee's M12 range is a fantastic range of 12V subcompact tools. Built for tough conditions, these small but powerful tools are perfect for those of you that don't need the added weight, size or power of 18V. The range is continuing to grow and you can already get over 100 other tools on the M12 platform. Built for the professional, each M12 product delivers the durability users have come to expect from MILWAUKEE. Whether it is the M12 Heated Jackets, designed with a new inner lining material that optimises heat transfer to the user, or the M12 FUEL HATCHET pruning saw delivering outstanding control and access.
SHOP THE M12 RANGE
MILWAUKEE FUEL
The Milwaukee FUEL range is unique compared to standard Milwaukee tools as it features much more powerful POWERSTATE brushless motors, than your standard brushless tools. According to Milwaukee, FUEL is 4 times as powerful! The POWERSTATE brushless motor delivers more application speed, torque and durability in a more compact form. It also produces less noise and cools down quicker to deliver years of maintenance free performance.
SHOP THE FUEL RANGESpecification
- Batteries 2 x 6.0Ah Lion Batteries
- Charge Time 90 Minute Charger
- Case Includes Carry Case
- Voltage 12V
- Battery Type Lithium-Ion
- Battery Capacity 6.0Ah
- Number of Batteries 2
- Charger Included? Yes
- Battery Compatibility Milwaukee 12v Li-ion
- Includes Case Yes
- Brushless Motor Yes
- Chuck Type 13mm Keyless
- Speed Control Variable Speed
- Reverse Control Reverse Action
- Number of Gears 2
- Max Bit Capacity in Wood Drilling Capacity 35mm (Wood)
- Max Bit Capacity in Metal Drilling Capacity 13mm (Metal)
- No Load Speed (RPM) 1700
- Drilling Modes Hammer Action
- Max Bit Capacity in Masonry Drilling Capacity 13mm (Masonry)
- Torque Settings 16
- Maximum Torque 44Nm
- Power Supply Cordless
- Buying Option With 2x 6.0Ah Batteries, Charger and Case
- Pack Size 1
- Product Weight 1.20kg
Warranty Information
Warranty Information

The warranty period is 12 months and commences on the date when the product was purchased. This date must be documented by an invoice or other proof of purchase. The warranty period is one year minimum for products, and one year maximum for batteries and chargers. This warranty applies only on new products.
In addition to any statutory rights resulting from the purchase of a new product, all MILWAUKEE branded power tools, outdoor tools and batteries are covered by a voluntary guarantee granted by the manufacturer
The MILWAUKEE Guarantee(s) are only applicable to purchaser(s) who purchase the products as end users ("Purchaser").
Most Milwaukee products can be registered for a 3-year warranty. The products EXCLUDED from the 3-year warranty are: Rechargeable battery packs, battery chargers, and accessories.
You must register your tool within 30 days of purchase. You can register your tools here:https://extension.milwaukeetool.eu/index.htm
