Description

  • Product Code:TREKWJ700
  • Model Number: KWJ700
  • Brand: Trend
  • Barcode: 5027654559710

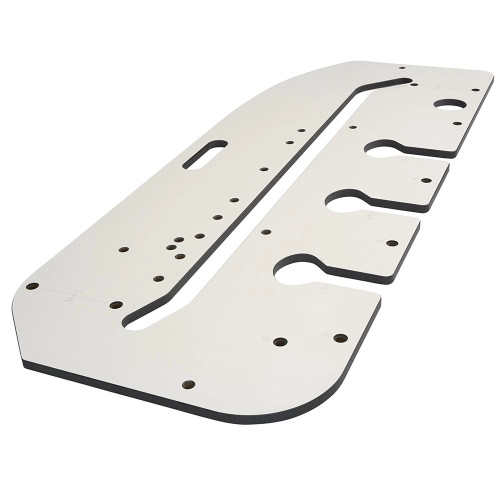

Trend KWJ700 Kitchen Trade Worktop Jig for up to 700mm worktops.

Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.

Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops. Cuts up to 40mm thick worktops with or without anti-drip postformed edge. Three open-ended bolt recesses (dog bone style) for 150mm bolts.

Engraved lines for short 65mm bolts and worktop cross-cut. 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.

Engraved markings for identification of pin holes. Pins made from ABS plastic for strength.

Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.

Dimensions:
Length 985 mm
Width 390 mm
Thickness 12 mm
Weight 5.4 kg
End Cut 45 degrees
Corner Radius 40 mm
Corner Radius 100 mm
Corner Radius 400 mm
Corner Mitre Joint 45 degrees
Female cut material width loss 35mm
Bolt recesses 3
Bolt recess centres 175 + 175mm
Bolt recess width 14mm
Jig Requirements
Guide bush 30mm
Plunge router 1/2-inch (min. 1300 watts)
Cutter 12.7 mm x 50 mm cut
Clamps Two




Authorised Trend Stockist

ITS are an authorised stockist of Trend Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!

Specification

Dimensions 985mm x 390mm x 2mm
Buying Option 700mm
Pack Size 1
Product Weight 1.0kg
Product Material Compact Grade High Pressure Laminate

Warranty Information

All Trend products are guaranteed for 12 months (unless guarantee card or product packaging advises otherwise) from the original purchase date against any manufacturing defects leading to premature failure. Trend guarantee to replace all defective parts free of charge or at its discretion to replace the product free of charge.

Trend Professional Power Tools meet the highest quality standards. Trend offers you the opportunity to extend your warranty to three years from date of purchase free of charge. All you have to do is register your tool online within four weeks of purchase.

This offer is available for the following Trend Professional Power Tools only; Product Refs. T5EB, T5ELB, T5EK, T5ELK, T5EK/MK2, T7EK, T10EK, T10ELK, T11EK, T11ELK, T20K, T20LK, T35A and T35AL
