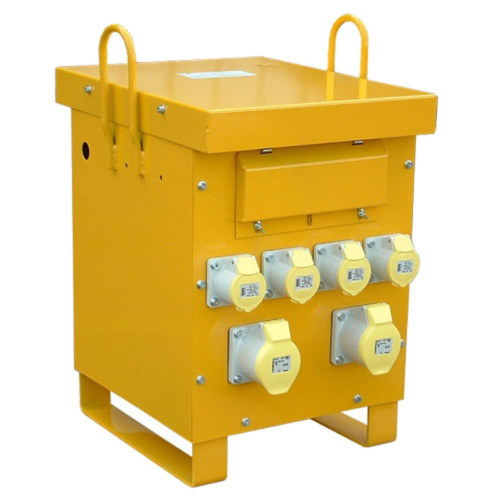

Carroll & Meynell Site Supply Transformer 110v Six Outlet 10kVA
Key Features
- Manufactured generally to BS4363
- Heavy duty sheet steel enclosure to IP23
- Output sockets to BSEN 60309 / IEC 60309
- Double Pole MCB for Primary input overload protection
- 4/16A & + 2/32A output sockets
£389.99
YOU SAVE £39.99 (10%)
£350.00
EX VAT
-
Free Gift
-
Promotion
-
Promotion
-
Promotion
-
Promotion
-
Promotion
Categories you might like
Description
- Product Code:CARCM10K16
- Model Number: CM10K16
- Brand: Carroll & Meynell
- Barcode: 10124
Site Supply Transformer 10.0kVA continuous rating. This item shipped without an input plug as Maximum input current can be up to 23A therefre direct wiring would be required
Manufactured generally to BS4363 with heavy duty sheet steel enclosure offering ingree protection to IP23. Double pole MCB overload protection for both the input and outputs.
Output sockets to BSEN 60309 / IEC 60309 (Previously BS4343). M5 Stud input terminals to accept your cabling
Sockets: 4 x 16A / 2 x 32A
Specification
Power Supply | Corded |
Dimensions | 600mm x 430mm x 390mm |
Pack Size | Single |
Product Weight | 53kg |
Product Material | Sheet Steel |
Voltage | 110V |
Socket Output | 4 x 16A/2 x 32A |
Colour | Yellow |
IP Rating | IP23 |
Standards/Approvals | BSEN 60309 / IEC 60309 |
Continuous Rating (Kva) | 10kVA |
Protection | Double Pole MCB For Primary Input |
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
