Vaunt 700mm Worktop Jig Package
Vaunt 30610 Vaunt 700mm Worktop Jig Package
Click Image to Enlarge
ITS Order Reference: VNT30610
ORDER REF: VNT30610 (Use this order reference to fill out order form)

£59.99ex VAT

(£71.99 inc VAT)

BOM

This store has

in stock

Check other stores

£59.99 ex VAT (£71.99 inc VAT)
In Stock Order within 1 Hour and 13 Minutes for earliest standard delivery on: Monday, 29th of April
Model No: 30610
How Many?
Add To Basket

Product Description

Model Number: 30610

Barcode: 5055284446346




Vaunt 700mm Trade Worktop Jig..........and........

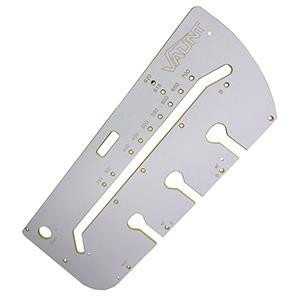

Hard wearing laminate faced MDF 13mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.

Fixed lengths for 250mm, 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops. Cuts up to 40mm thick worktops with or without anti-drip postformed edge. Three open-ended bolt recesses (dog bone style) for 150mm bolts.

Features:

  • End Cut 45 degrees
  • Corner Radius 40 mm
  • Corner Radius 100 mm
  • Corner Radius 400 mm
  • Corner Mitre Joint 45 degrees
  • Female cut material width loss 35mm
  • Bolt recesses 3
  • Bolt recess centres 175 + 175mm
  • Bolt recess width 14mm
  • Jig Requirements


Jig requires:

  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
  • A template guide bush with 30mm outside diameter.
  • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
  • Two clamps.

Dimensions:

  • Length 985 mm
  • Width 390 mm
  • Thickness 12 mm
  • Weight 5.4 kg



Specification

  • Routing Jig TypeWorktop Jig
alt=""

Warranty

This product comes with a standard one year warranty covering manufacturing fault. For more information on this product's specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (8am-8pm Monday to Friday, 8am- 5pm Saturday) with the ITS Order Ref (above) or the Product Title
