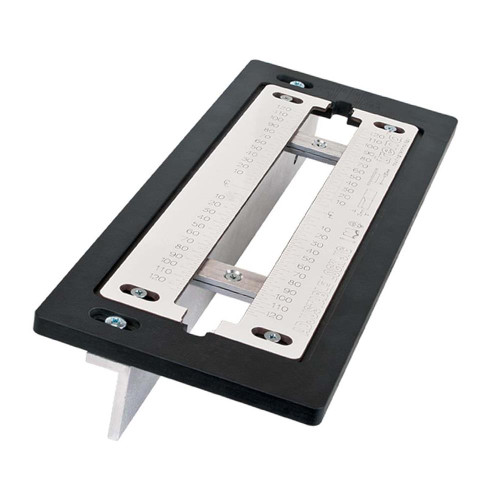

Trend LOCK/JIG/B Trend Adjustable Lock Jig

  • Trend LOCK/JIG/B Trend Adjustable Lock Jig
  • Trend LOCK/JIG/B Trend Adjustable Lock Jig_Alt_Image_0
  • Trend LOCK/JIG/B Trend Adjustable Lock Jig_Alt_Image_1
  • Trend LOCK/JIG/B Trend Adjustable Lock Jig_Alt_Image_2
Trend LOCK/JIG/B Trend Adjustable Lock Jig
Click Image to Enlarge
ITS Order Reference: TRELOCK/JIG/B
£82.99 ex VAT (£99.59 inc VAT)
In Stock Order within 21 Minutes for earliest standard delivery on: Friday, 28th of October
Model No: LOCK/JIG/B
Add To Basket

Product Description

Model Number: LOCK/JIG/B

Barcode: 5027654560716

Trend LOCK/JIG/B Adjustable Trade Lock Jig

Adjustable sliding inserts to allow face-plate & mortise recesses for popular size door locks to be routed.

Fully adjustable for lock face plate length up to 250mm. Quick & easy to set up using engraved lines for lock size & door sizes.

Engraved for 16mm and 19mm lock width and 22.5mm & 25.4mm face plate widths. Engraved on underside to allow set up for 35mm, 40mm, 44mm & 54mm door widths.

Deeper mortises can be achieved with a suitable size auger bit.

Fast, clean & accurate results on doors from 34mm to 54mm thick, even in hardwood.

Plastic laminate body with aluminium clamping bar. Includes a pair of setting blocks for specific lock widths & to assist in door centring.

The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 10mm spigot, 12mm diameter long reach cutter & two quick action clamps.



This product comes with a standard one year warranty covering manufacturing fault. For more information on this product's specific warranty details please contact us directly on Email: or Phone: 0208 532 5000 (8am-5pm Monday to Saturday) with the ITS Order Ref (above) or the Product Title
