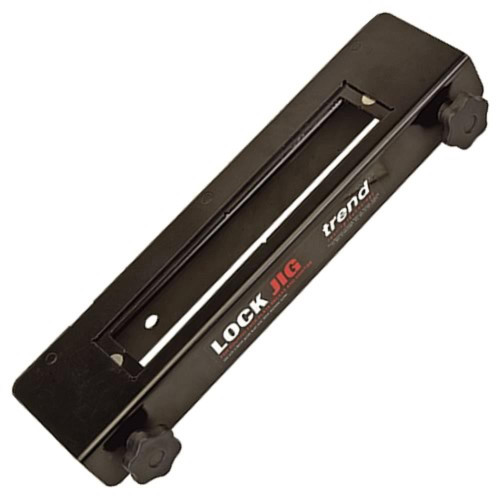

Trend LOCK/JIG/A Trend Large Lock Jig

  • Play Video
  • Trend LOCK/JIG/A Trend Large Lock Jig
  • Trend LOCK/JIG/A Trend Large Lock Jig_Alt_Image_0
  • Trend LOCK/JIG/A Trend Large Lock Jig_Alt_Image_1
Trend LOCK/JIG/A Trend Large Lock Jig
Click Image to Enlarge
ITS Order Reference: TRELOCK/JIG/A
£134.99 ex VAT (£161.99 inc VAT)
In Stock Order within 21 Hours and 13 Minutes for earliest standard delivery on: Tuesday, 25th of October
Model No: LOCK/JIG/A
Add To Basket

Product Description

Model Number: LOCK/JIG/A

Barcode: 5027654544129
For routing the face-plate and mortise for larger locks quickly and accurately.
Suitable for DDA (Disability Discrimination Act) style locks. 20mm or 24mm x 235mm radius end face plate and 17mm x 170mm mortise.
Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard lock jig above)
Suitable for doors 34mm to 58mm thick.
An auger bit and drill may be required to complete deep mortise.

This Lock Jig includes:
1 x Guide bush collar (this fits to the Trend 16mm Guide bush GB160, which is supplied with the Trend hinge jig to give a 30mm diameter...this saves set up time).
2 x Face plate templates
1 x Mortise templates
1 x Template adaptor



This product comes with a standard one year warranty covering manufacturing fault. For more information on this product's specific warranty details please contact us directly on Email: or Phone: 0208 532 5000 (8am-5pm Monday to Saturday) with the ITS Order Ref (above) or the Product Title
